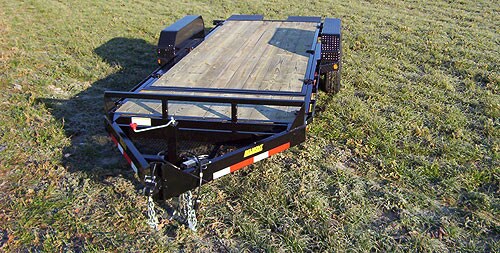

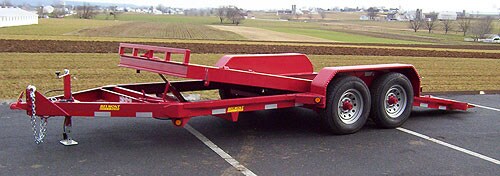

Skid Steer Tilt Deck




Models SSTD18-10 SSTD18-12 SSTD18-14 SSTD21-12 SSTD21-14
Overall Length
23'4"
26'3"
Overall Width
102"
Bed Width
81" (between fenders)
82"
Overall Length
18'
21' (18' Tilt - 3' stationary)
Bed Height
20"
21"
23"
Decking
2" x 10" treated pine
Axles
(2) Dexter E-Z Lube
Brakes
Electric - both axles
2 - 6K Dexter E-Z Lube
2 - 7K Dexter E-Z Lube
Wheels
6 bolt 15" (silver mod)
8 bolt 16" (silver mod)
8 bolt 16"
Tires
ST 225/75 D15
LT 245/75 R16
LT 235/85 R16
LT 245/75 R16
LT 235/85 R16
Suspension
Slipper Leaf Spring
Torflex
Jack
7000# Drop Leg
10,000# Drop Leg
10K Drop Leg
Coupler
5 position 2 5/16 ball or pintle
G.V.W.
9990#
12,000#
14,000#
12,000#
14,000#
Stake Pockets
(8) 4 per side
(10) 5 per side
D-Rings
6
8
Load Angle
10 degrees
Trailer Weight
2970#
3010#
3070#
3700#
3800#
Wiring
Sealed Modular Harness
Cushion Cylinder
2 1/2" x 10" Hydraulic Cylinder
2 1/2" x 12" Hydraulic Cylinder (Power Tilt Optional)
