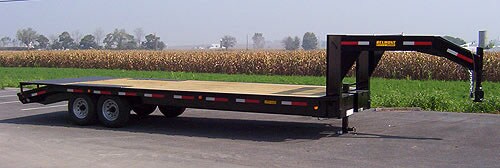

Gooseneck Trailer



Models GN-10 GN-12 GN-14 GN-16
Overall length
27' 9 1/2"
32'2"
Overall width
101 1/2"
Deck width
96"
Deck length. w/beavertail
20'
24'
Beavertail
4'
Deck height
30 3/4"
32 3/4"
33 1/2"
34 1/2"
Overall height
73"
74"
75"
Axles
2@6000#
2@7000#
2@8000#
Suspension
Slipper leaf springs
Wheels
6 Bolt 15"
8 Bolt 16"
8 Bolt 17.5"
Wheels Silver mod wheels
Gray industrial
Tires
ST225/75/15
LT245/75R16
LT235/85R16
LT215/75R17.5
Load range
D
E
G
H
Tire capacities
2540 lbs.
3450 lbs.
3750 lbs.
4750 lbs.
Coupler size
2 5/16" Ball-vertical adjustable
Jack
12,000 lb
G.V.W. Rating
10,000 lb.
12,000 lb.
14,000 lb.
16,000 lb.
Trailer Weight*
3250#
3450#
4550#
4750#
Decking
2" Treated
