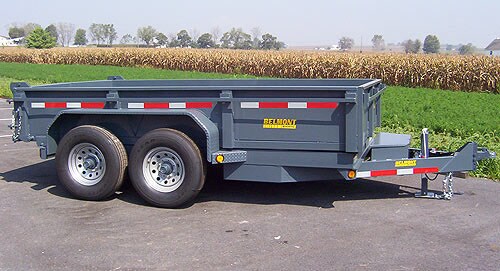

Dump Trailer



Model DT6812LP-10 DT6812LP-12 DT6812LP-14
Bed Width
6'8"
Bed Length
12'
Deck Height
22"
23"
Sidewall Height
20"
Volume
4.94 cu.yds.
Overall Length
202"
Overall Width
102"
Overall Height
43 1/2"
44 1/2"
Empty Weight
3550 lbs.
3600 lbs.
3650 lbs.
GVWR
10,000 lbs.
12,000 lbs.
14,000 lbs.
GAWR
6,000 lbs.
7,000 lbs.
Payload
7350 lbs.
9600 lbs.
11,750 lbs.
Jack
7k Drop leg
10k Drop leg
Tires 225/75D15 (D)  245/75R16 (E) 235/85R16 (G)
Coupler
Adjustable - 5 Position Ball or Pintle Hitch
Axles
Dexter E-Z Lube
Suspension
Torflex
Brakes
Electric - Both Axles Standard
Ramps
5' Tube Steel - Heavy Duty - Slide-in
Hoist
Power Up and Down
Cylinders
Two - 3.5" Diameter Hydraulic Cylinders
Pump
12V Double Acting System
Floor
10 Ga. Steel
Sides
12 Ga. Steel
D-ring Tie Downs
4
Stake Pockets
11
Tail Gate
Double Action
Spreader Gate and Barn Door
47Degree Dump Angle
Tarp Tie Down Rail
Lockable Pump and Battery Box
Silver Automotive Style Wheels
D.O.T. Approved Lighting
*1 Year hitch to bumper warranty
SPECIAL NOTE
FOR ALL TRAILERS!
Phosphatized-before priming
Epoxy primer
Polyurethane paint-Electrostatically applied
